IALA System of Buoyage/Navigation Aid IMO 76000
IMO 76000
Ø 3000mm
High visibility red, green, white, yellow or blue as per IALA recommendations .Designed for harsh sea conditions.Four quarters made in polyethylene filled with EPS or PU
TECHNICAL DATA
Ø: 3000 mm
Height : 9650 mm
The Lantern focal height is
adjustable with modular parts.
Raw material : UV-stabilised virgin polyethylene
Metal structure : Hot Dip galvanized or stainless steel

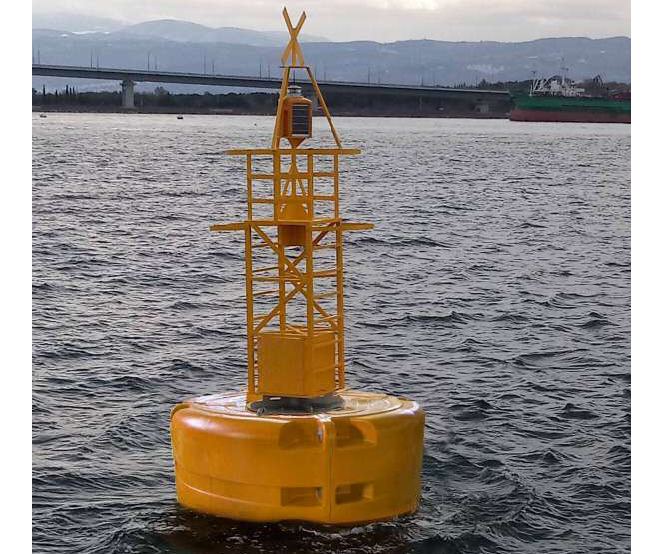

IALA System of Buoyage/Navigation Aid IMO 75500
IMO 75500
Ø 2500mm
High visibility red, green, white, yellow or blue as per IALA recommendations .Designed for harsh sea conditions.Four quarters made in polyethylene filled with EPS or PU
TECHNICAL DATA
Ø: 2500 mm
Height : 5900 mm
Note : The Lantern focal height is adjustable with modular parts.
Raw material : UV-stabilised virgin polyethylene
Filling : EPS veya Poliüretan /EPS or PU
Metal structure : Hot Dip galvanized, aluminum or stainless steel
IALA System of Buoyage/Navigation Aid IMO 75000
IMO 75000
Ø 2200 mm.
High visibility red, green, white, yellow or blue as per IALA recommendations .
Designed for harsh sea conditions.Modular parts with individual colors .
Supported connection holes for mooring The Top fits to every marine lantern or day signal.
* Design for harsh sea conditions
* 3 or 4 pieces production with individual color options
* Supported connection holes for mooring
* Top end fit to every marine lantern or day signal
TECHNICAL DATA
Ø: 2200mm
Height without top mark: 4010mm
Note : The Lantern focal height is
adjustable with modular parts.
Total weight : 650 kg
Raw material : UV-stabilised virgin polyethylene
Filling : EPS or PU
Metal structure : Hot Dip galvanized or stainless steel

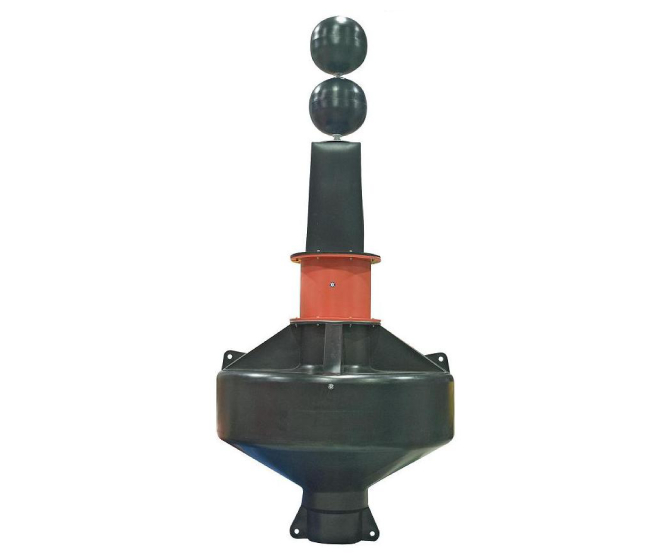

IALA System of Buoyage/Navigation Aid IMO 74000
IMO 74000
Ø 1750 mm.
* Design for harsh sea conditions
* 3 pieces production with individual color options
* Supported connection holes for mooring
* Top end fit to every marine lantern or day signal
TECHNICAL DATA
Ø: 1750 mm
Height without top mark : 3550mm
Note: The Lantern focal height is adjustable
with modular parts.
Raw material : UV-stabilised virgin polyethylene
Filling : EPS or PU
Metal structure : Hot Dip galvanized or stainless steel

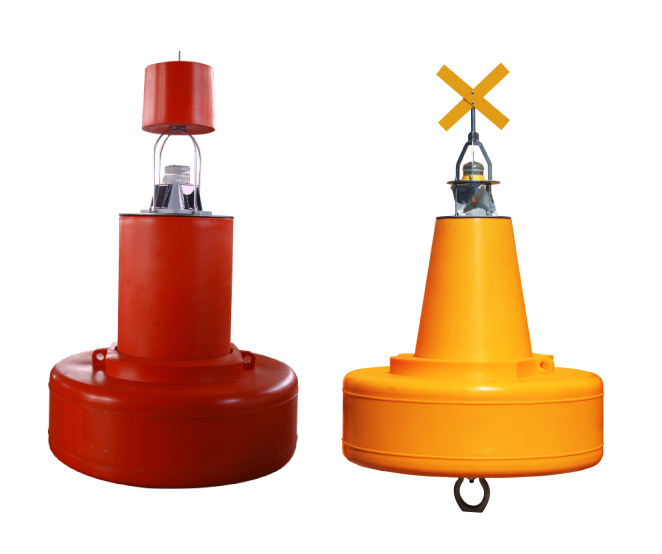

IALA System of Buoyage/Navigation Aid IMO 73000
IMO 73000
Ø 1250 mm.
Red, green, yellow, white, blue or black as per IALA Recommendations.
* Inside : EPS or Polyurethane filled
* Hot dipped galvanized or stainless steel shaft through the body.
* Flange for top mark and light at upper end, swivel for mooring at bottom end
TECHNICAL DATA
Ø 1250mm
Height without top mark : 1200mm
Note: The Lantern focal height is adjustable with modular parts.
Raw material : UV-stabilised virgin polyethylene
MOORING BUOY
IMO 77000 is one of the biggest buoys in the world. It comes in 8 pieces and they are connected to each other with bolts and nuts.
IMO 77000
Ø 4000 mm
TECHNICAL DATA
Ø: 4000 mm
Overall Lenght : 4700 mm
Floatation per centimeter :120 kg
Overall weight of buoy with shackle : 3800 kg
Inner Structure : Hot Dip Galvanized
Float Material : UV-stabilized Virgin
Internal Foam Filling: EPS or PU

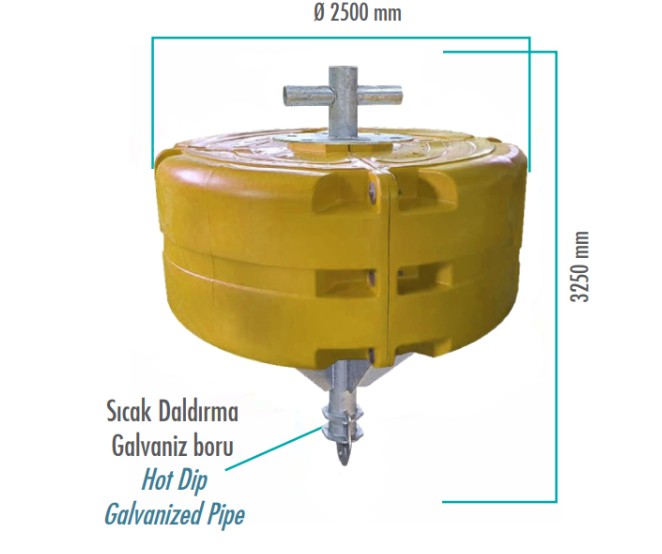

MOORING BUOY
IMO 75600
Ø 2500 mm
TECHNICAL DATA
Ø:2500 mm
Overall Lenght: 3250 mm
Buoyancy: 4860 kg
Overall weight of buoy with shackle : 1500 kg
Inner Structure: Hot Dip Galvanized
Float Material: UV-stabilized Virgin
Internal Foam Filling: EPS or PU
